AVK AK Series Threaded Insert

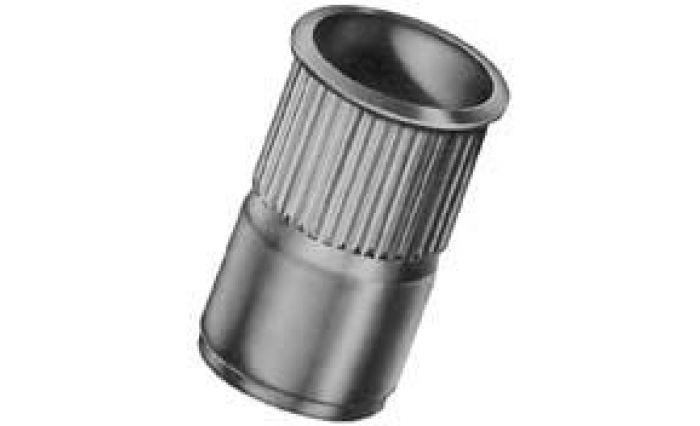

AK Series Steel Thread Insert

Low Profile Head

Zinc Dichromate Steel

$0.25 - $1.10 (GST Inc) $0.23 - $1.00 (GST Ex) Select Size Options Ask a Question

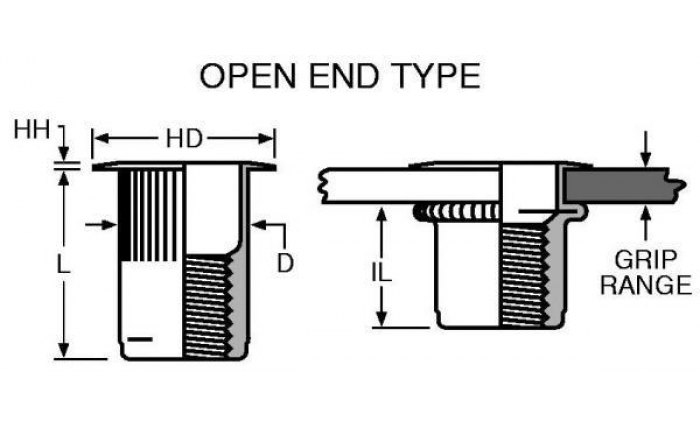

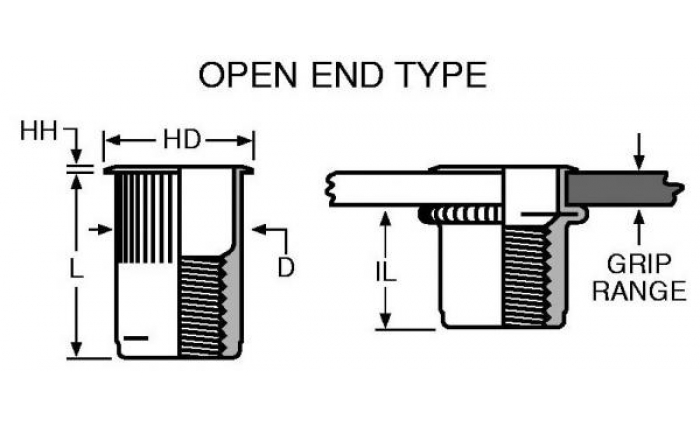

Sizing Options

Card No.
Part No.
Thread
Min Grip
Max
Hole
HD
HH
L
D
GST Inc.
GST Ex.
Card No.
1880.12
Part No.
AKS4.1024.130
Thread
3/16" UNC
Min Grip
0.5
Max
3.3
Hole
7.60
HD
8.64
HH
0.48
L
12.07
D
7.52
$0.25 (GST Inc.)
$0.23 (GST Ex.)
Card No.
1880.50
Part No.
AKS4.470.2.0
Thread
M4
Min Grip
0.5
Max
2.0
Hole
6.75
HD
7.87
HH
0.48
L
10.67
D
6.73
$0.31 (GST Inc.)
$0.28 (GST Ex.)
Card No.
1881.50
Part No.
AKS4.470.3.3
Thread
M4
Min Grip
2.0
Max
3.3
Hole
6.75
HD
7.87
HH
0.48
L
11.94
D
6.73
$0.35 (GST Inc.)
$0.32 (GST Ex.)
Card No.
1880.51
Part No.
AKS4.580.3.3
Thread
M5
Min Grip
0.5
Max
3.3
Hole
7.60
HD
8.64
HH
0.48
L
12.07
D
7.52
$0.30 (GST Inc.)
$0.27 (GST Ex.)
Card No.
1881.51
Part No.
AKS4.580.5.7
Thread
M5
Min Grip
3.3
Max
5.7
Hole
7.60
HD
8.64
HH
0.48
L
14.86
D
7.52
$0.30 (GST Inc.)
$0.27 (GST Ex.)
Card No.
1880.52
Part No.
AKS4.610.4.2
Thread
M6
Min Grip
0.7
Max
4.2
Hole
10.00
HD
11.56
HH
0.55
L
14.73
D
9.91
$0.35 (GST Inc.)
$0.32 (GST Ex.)
Card No.
1881.52
Part No.
AKS4.610.6.6
Thread
M6
Min Grip
4.2
Max
6.6
Hole
10.00
HD
11.56
HH
0.55
L
17.27
D
9.91
$0.45 (GST Inc.)
$0.41 (GST Ex.)
Card No.
1880.14
Part No.
AKS4.420.165
Thread
1/4" UNC
Min Grip
0.7
Max
4.2
Hole
10.00
HD
11.56
HH
0.55
L
14.73
D
9.91
$0.35 (GST Inc.)
$0.32 (GST Ex.)
Card No.
1881.14
Part No.
AKS4.420.260
Thread
1/4" UNC
Min Grip
4.2
Max
6.6
Hole
10.00
HD
11.56
HH
0.55
L
17.27
D
9.91
$0.45 (GST Inc.)
$0.41 (GST Ex.)
Card No.
1880.53
Part No.
AKS4.8125.3.8
Thread
M8
Min Grip
0.7
Max
3.8
Hole
13.50
HD
15.11
HH
0.55
L
17.53
D
13.46
$0.50 (GST Inc.)
$0.45 (GST Ex.)
Card No.
1881.53
Part No.
AKS4.8125.7.9
Thread
M8
Min Grip
3.8
Max
7.9
Hole
13.50
HD
15.11
HH
0.55
L
20.45
D
13.46
$0.60 (GST Inc.)
$0.55 (GST Ex.)
Card No.
1880.16
Part No.
AKS4.518.150
Thread
5/16" UNC
Min Grip
0.7
Max
3.8
Hole
13.50
HD
15.11
HH
0.55
L
17.53
D
13.46
$0.50 (GST Inc.)
$0.45 (GST Ex.)
Card No.
1880.54
Part No.
AKS4.1015.3.8
Thread
M10
Min Grip
0.7
Max
3.8
Hole
13.50
HD
15.11
HH
0.55
L
17.53
D
13.46
$1.05 (GST Inc.)
$0.95 (GST Ex.)
Card No.
1881.54
Part No.
AKS4.1015.7.9
Thread
M10
Min Grip
3.8
Max
7.9
Hole
13.50
HD
15.11
HH
0.55
L
20.45
D
13.46
$1.10 (GST Inc.)
$1.00 (GST Ex.)
Card No.
1880.18
Part No.
AKS4.616.150
Thread
3/8" UNC
Min Grip
0.7
Max
3.8
Hole
13.50
HD
15.11
HH
0.55
L
17.53
D
13.46
$0.70 (GST Inc.)
$0.64 (GST Ex.)
